Industrial Filtration Solutions Pharmaceutical
Pharmaceutical Filtration Solutions — Manufacturer in India | Praimo Industrial Filters & Spares Manufacturing Company
Pharmaceutical manufacturing allows no margins for contamination. Praimo Industrial Filters & Spares Manufacturing Company designs and manufactures sanitary filtration systems engineered for cGMP environments, ASME BPE piping, and regulatory audit-readiness. From PW/WFI loops and aseptic filling to sterile air, nitrogen, and clean steam, Praimo delivers SS316L electropolished housings, 0.2 µm sterilizing-grade PES/PTFE cartridges, and fully documented assemblies that integrate cleanly into validated lines. Expect CIP/SIP compatibility, traceable materials (EN 10204 3.1), and IQ/OQ/PQ support—backed by responsive engineering and dependable lead times.
Pharma Process Coverage & Use-Cases (Sterile, WFI, Biologics)
Purified Water (PW) & Water for Injection (WFI) Filtration
- PW/WFI systems demand consistent microbial control at distribution and use-points. Praimo’s SS316L hygienic cartridge filter housings—internally electropolished to Ra ≤ 0.4 µm and fitted with sanitary tri-clamp connections—help minimize dead legs and simplify validation. 0.2 µm PES membrane filters maintain bioburden control, while PTFE hydrophobic vents protect tanks during thermal cycles and hold periods. All assemblies are CIP/SIP-capable (121–134 °C) and designed for complete drainability.
Engineering Insight: Switching from general-purpose vessels to Praimo hygienic housings often reduces excursion events because crevice-free internals and drainable designs limit microbial harborage.
Hygienic Cartridge Filter Housing (SS316L) • Duplex Filter Housing for continuous water loops • Sanitary Y-Type / Basket Strainers
API & OSD Manufacturing — Clarification & Bioburden Control
- API crystallization, slurry handling, and OSD coating lines benefit from staged solids removal. Praimo bag filter housings handle high particulate loads up-front, while PP depth cartridges stabilize turbidity ahead of sterilizing-grade membranes (where required). This approach reduces changeouts and stabilizes pressure profiles, improving batch reliability.
Field Experience:
In OSD plants, upgrading from single-stage bags to bag → depth → membrane often increases media life by 25–40% and delivers cleaner downstream operations.
Bag Filter Housing for pre-filtration • PP Pleated / Depth Cartridges

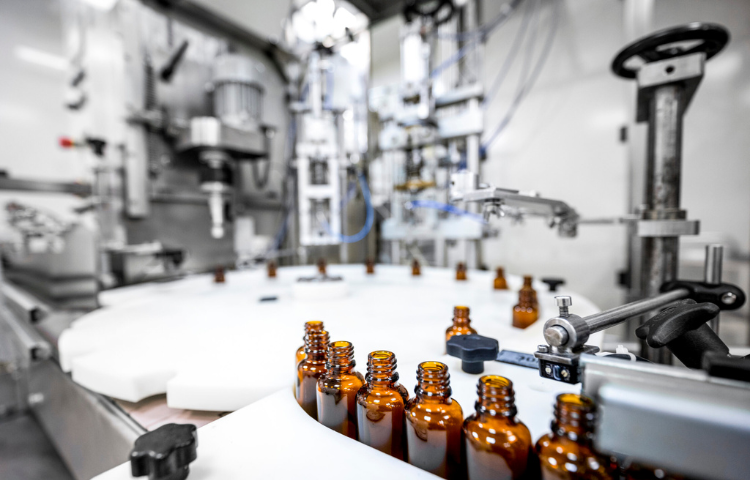

Sterile Injectables & Aseptic Processing
- Injectables demand absolute assurance at the sterilizing step. Praimo’s 0.2 µm PES sterilizing-grade cartridges provide validated microbial retention, with integrity testing (Bubble Point, Diffusion, Pressure Hold) performed per lot. 0.1 µm options address mycoplasma risk in sensitive biologics. Cartridges are supported with USP / statements and complete validation dossiers to streamline regulatory review.
Internal links:
PES Sterilizing-Grade Cartridges 0.2/0.1 µm • Sanitary Cartridge Filter Housing (multi-round)

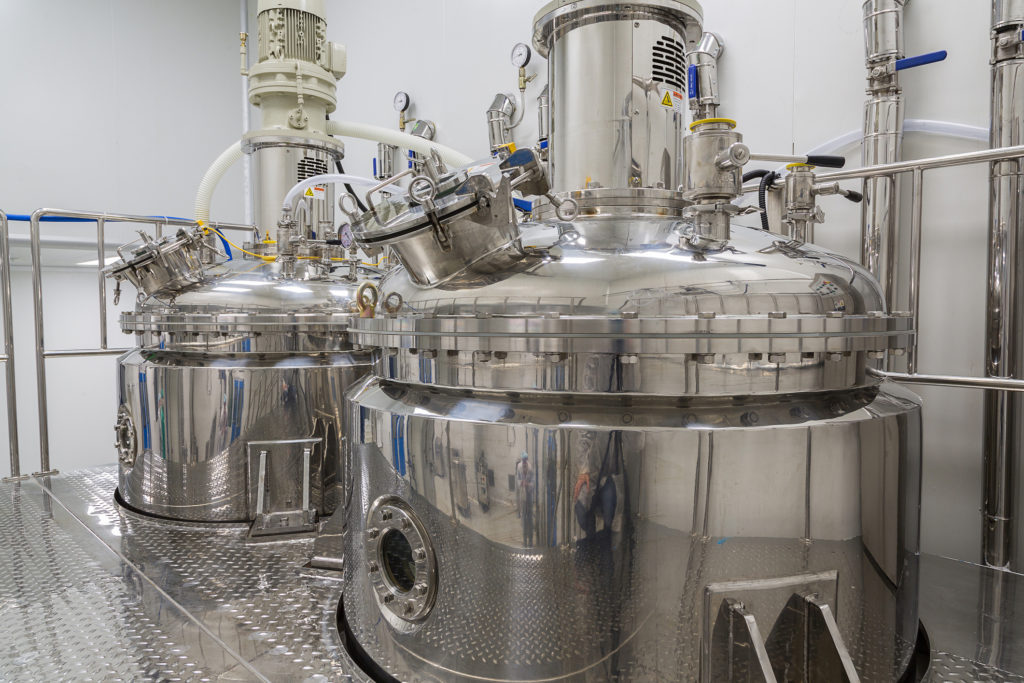

Biotech & Fermentation Processes
- From media/buffer prep to harvest and polishing, Praimo offers 0.45 µm depth filters for particulate reduction and 0.2 µm membranes for bioburden control. Hydrophobic PTFE vent/gas filters protect fermenters and bioreactors, balancing airflow while preventing ingress. Housings are ASME BPE-aware and engineered for quick validation.
Internal links:
PTFE Vent & Gas Filters • Cartridge Filter Housing for biotech skids
Clean Utilities: Clean Steam, Sterile Air & Nitrogen
- Utilities that touch sterile boundaries must be treated as part of the aseptic chain. Praimo supplies stainless-steel compressed-air housings with PTFE membranes for sterile air/nitrogen and clean steam filters sized to condensate loads. Designs minimize hold-up, support SIP, and include calibrated instrumentation where required.
Application Tip:
If sterile air lines see variable humidity or condensate, pair PTFE cartridges with coalescing pre-filters to stabilize ΔP and extend membrane life.
Compressed Air / Gas Filters • Coalescer/Separator Skids • Clean Steam Filters
Cleanroom HVAC & Environmental Control
- Praimo’s HEPA and terminal panel filters maintain ISO-classified cleanroom conditions for weighing, dispensing, and filling suites. Filters meet EN 1822 performance levels and integrate with differential pressure monitoring for proactive maintenance.
HEPA / Terminal Filters for pharmaceutical cleanrooms
Sanitary Filtration Hardware for Pharma (SS316L, ASME BPE)
Praimo Industrial Filters & Spares Manufacturing Company manufactures a complete suite of hygienic filtration hardware to standardize pharmaceutical skids and utility rooms:
- Hygienic Cartridge Filter Housing — 10–40 in; single & multi-round; SS316L/2205 Duplex; electropolished
- Sanitary Bag Filter Housing — high-solids pre-filtration for slurry/solution prep
- Duplex Filter Systems — no-shutdown changeover for PW loops and utilities
- Inline Strainers (Y-Type / Basket) — debris protection for pumps, valves, and PW returns
- Vent & Gas Filter Assemblies — PTFE for sterile tank vents and fermenters
Best Practice:
Specify Ra ≤ 0.4 µm internal finish with FDA-grade EPDM/Silicone/Viton seals and include drain/vent ports per URS to ease CIP/SIP validation.
Cartridge Filter Housing (SS316L, electropolished) • Bag Filter Housing (sanitary) • Duplex Filter Housing / Duplex Strainer • Sanitary Y-Type / Basket Strainers
Sterilizing-Grade & Bioburden-Reduction Cartridges (PES / PTFE / PP)
Praimo’s cartridge portfolio supports absolute-rated retention with traceable documentation:
- PES (Poly Ether Sulphone): sterile liquid filtration at 0.2 µm; 0.1 µm for mycoplasma control
- PTFE (Poly Tetra Fluoro Ethylene): hydrophobic for sterile air/nitrogen and solvent vents
- PP depth: graded porosity for bioburden reduction and cost-effective pre-filtration
- Integrity testing: Bubble Point, Diffusion, Pressure Hold; lot-wise certificates
Process Observation:
Plants that standardize on graded porosity PP pre-filters ahead of PES often report a 30%+ reduction in sterilizing-grade cartridge consumption.
PES Sterilizing-Grade Filters • PTFE Gas/Vent Cartridges • PP Depth / Pleated Pre-Filters
Materials, Surface Finish & Compliance (cGMP, ASME BPE, USP)
Every assembly from Praimo is designed for audit confidence:
- Materials: SS316L with EN 10204 3.1 material certificates; Duplex 2205 on request
- Surface Finish: internal electropolish; Ra ≤ 0.4 µm; optional mirror Ra ≈ 0.25 µm
- Elastomers: FDA-grade EPDM, Silicone, Viton; optional FEP-encapsulated for solvents
- Documentation: DQ/IQ/OQ/PQ packs, FAT/SAT, weld logs, passivation reports
- Compliance: ASME BPE, USP Class VI, BSE/TSE, EU GMP Annex 1
Engineering Insight:
Praimo uses orbital TIG with argon purging and validated pickling/passivation to produce crevice-free welds that rinse cleanly and maintain‐as-built surface quality over repeated SIP cycles.
Hygienic Filter Housing (ASME BPE-aware) • Validation & Documentation Support
Sizing & Selection Guide (Flow, ΔP, Viscosity, Micron)
Right-sizing ensures stable production and predictable changeouts. Praimo’s sizing rules of thumb:
- Liquids: plan 10–20 LPM per 10-inch cartridge at ≤ 0.8 bar ΔP (clean)
- Gases: 25–60 Nm³/h per 10-inch PTFE element (dry air, 1 bar ΔP guideline)
- Micron strategy: coarse pre-filtration → depth → 0.2 µm membrane to minimize cost/batch
- Viscosity: above 20–30 cP, increase area via multi-round housings or parallel skids
- Worked examples: WFI use-point filters sized to peak demand; sterile air headers sized to worst-case draw with redundancy
Application Tip:
Track normalized ΔP versus throughput. When ΔP growth accelerates, changeouts scheduled before integrity loss preserve sterility assurance and batch timing.
Cartridge Filter Housing Selection (multi-round options) • Bag Filter Housing Sizing (high-solids)
CIP/SIP, Cleaning Chemistry & Sterilization Cycles
- Praimo systems are validated for repeated CIP and SIP. Assemblies tolerate common alkaline/acidic detergents (up to pH 12) and saturated steam cycles at 121–134 °C. Drainability, venting, and instrumentation ports are positioned for complete evacuation and easy verification during qualification.
Field Experience:
Customers routinely exceed 250 SIP cycles on Praimo housings and cartridges without integrity failures when water quality and ramp/hold times are within validated limits.
CIP/SIP-Compatible Filters (PES/PTFE/PP) • Hygienic Filter Housing (drainable design)
QA, Documentation & Traceability for Regulatory Audits
OSD Slurry Pre-Filtration
A formulations plant replaced generic bags with Praimo felt filter bags followed by PP depth cartridges. Result: ~40% fewer changeouts, smoother coating, and fewer cosmetic defects—lower rework and higher throughput.
WFI Vent Filtration
A sterile facility standardized on Praimo hydrophobic 0.2 µm PTFE for WFI tank vents. The change eliminated condensate-related microbial excursions and stabilized tank pressure during thermal cycling.
Engineering Insight:
Cross-functional support—engineering + QA—accelerates tech transfer. Praimo’s combined documentation and on-site guidance reduces time from FAT to routine production.
PTFE Vent Filters (hydrophobic) • PP Depth Pre-Filters (graded porosity) • Felt Filter Bags (sanitary)
FAQs — Pharma Filtration (0.2 µm, Integrity Tests, SIP Limits)
When ΔP exceeds the qualified limit or after the validated batch count, whichever is earlier. Praimo provides changeout criteria and batch-linked records to support QA review.
0.2 µm is the standard for bacteria removal; 0.1 µm is recommended for mycoplasma control in biologics. Praimo supplies both, with challenge data available.
Validated to 250 steam cycles at 134 °C, assuming water quality, ramp rates, and hold times remain within the qualified envelope.
Internal links:
PES 0.2/0.1 µm Filters • Sterile Gas/PTFE Filters
Get a GMP-Ready Proposal (Lead Times, Samples, Validation Support)
Upgrade your pharmaceutical line with Praimo Industrial Filters & Spares Manufacturing Company—India’s trusted pharmaceutical filtration manufacturer for hygienic cartridge filter housings, sterilizing-grade cartridges, and validated filtration systems. Our engineers will size your media and area, define micron strategy, and package DQ/IQ/OQ/PQ documentation to simplify audits and get you into routine production faster.
