Industrial Filtration Solutions for the Paints Industry
By Praimo Industrial Filters & Spares Manufacturing Company
Paint manufacturing is unforgiving. Tiny gels, undispersed pigments, or fibers can throw off viscosity, alter color, clog nozzles, and force costly rework. Praimo Industrial Filters & Spares Manufacturing Company engineers complete paint filtration systems—from intake strainers to final micro-filters—that stabilize your process, protect equipment, and deliver a flawless finish batch after batch.
Why Filtration Matters in Paint Manufacturing (Quality, Yield, Consistency)
Modern paint lines run fast, hot, and complex. Resins, solvents, and pigments behave differently under shear; contaminants don’t just spoil appearance—they change chemistry. Robust, staged paint filtration protects every step:
- Keeps dispersion uniform during grinding and milling
- Prevents agglomerates from deforming film build
- Preserves nozzle life and spray uniformity
- Maintains stable pressure and flow across shifts
A multi-stage train—Basket Strainer → Bag Filter → Cartridge Filter—typically reduces downstream nozzle blockages by 30–50% compared to single-stage setups, while extending element life through progressive loading.

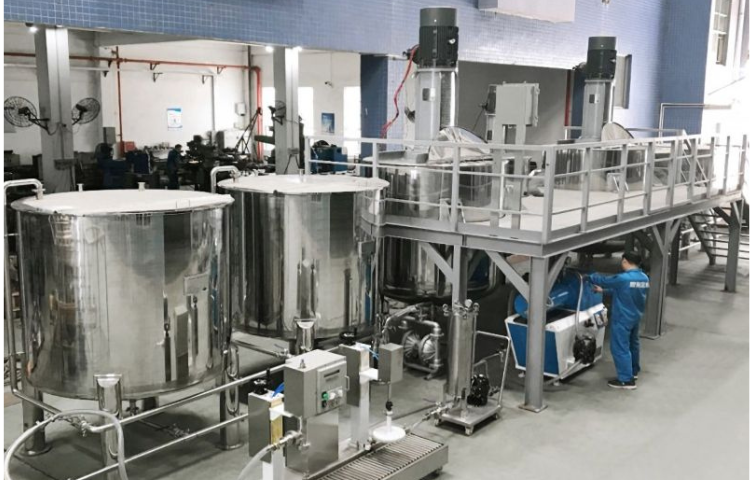

Paint Production Flow & Where to Filter (From Dispersion to Filling)
Key Stages & Filtration Objectives
Remove coarse grit before it reaches the mill (use Basket/Y-Type Strainers)
Control mid-size particles to lock in color consistency (add Bag Filters)
Protect tanks and pumps; keep ΔP predictable (use Duplex Filters for continuous duty)
Polish to target micron for finish quality (deploy Cartridge Filter Housings)
Process Observation:
Plants introducing a polishing step of 5–10 μm absolute at final filtration report more stable gloss readings and fewer end-of-line rejects—especially on high-gloss top-coats.
Solutions Catalog for Paints & Coatings (Matched to Application & Viscosity)
Cartridge Filter Housing for Paint Polishing (Fine & Absolute Filtration)
For solvent-based and water-borne paints, Cartridge Filter Housings (SS304/SS316L) achieve 1–25 μm polishing without fiber shedding. Options include vent/bleed ports, sanitary tri-clamps, and electropolished surfaces for fast clean-downs.
- Link in context: Cartridge Filter Housing (internal product page)
Bag Filter Housing for High-Viscosity Paints (Bulk Contaminant Removal)
Pigment-heavy and high-viscosity batches benefit from Bag Filter Housings (#1/#2 size, single or multi-bag). Tool-less covers and swing bolts shorten change-outs; PP, PTFE, and polyester media handle both solvent and latex systems.
- Link in context: Bag Filter Housing
Basket Strainers & Y-Type Strainers (Pre-Filtration & Equipment Protection)
Upstream of mills and positive displacement pumps, Basket Strainers and Y Strainers catch coarse particles and protect seals. Choose perforated baskets or SS wire mesh inserts to match your typical contaminant profile.
- Link in context: Basket Strainers
Duplex Filters for Continuous Operation (No Downtime)
Duplex Filter Systems allow filter changeover on the fly—ideal for continuous recirculation loops and packaging lines. Indicator options (ΔP gauges, switches) cue swaps before quality drifts.
- Link in context: Duplex Filter
Automatic Self-Cleaning Filters (Large Recirculation, Low Touch)
For large paint loops and rinse lines, Self-Cleaning Filters (backwash or scraper) keep elements clear without disassembly. They stabilize ΔP, reduce labor, and keep operators focused on throughput.
- Link in context: Self-Cleaning Filters
Automotive-grade top-coat lines that moved to duplex polishing + self-cleaning pre-filters saw 20–35% faster batch turnover thanks to fewer stoppages and predictable change-outs.
Filter Media & Materials for Paints (Compatibility, Shedding, Cleanability)
- Metals: SS304 / SS316L / Duplex SS 2205 for solvent resistance and mechanical strength
- Polymers: PP (broad chemical compatibility), PTFE (excellent solvent resistance), Nylon/Polyester Mesh (repeatable cut-off)
- Micron Range: 1–200 μm (nominal or absolute) tuned to viscosity, pigment size, and finish class
- Seals: EPDM, Viton, PTFE—specified by solvent system and temperature
Match media chemistry to solvent family first, then pick micron. For example, PTFE cartridges for ketone/ester systems; PP felt bags for water-borne primer; nylon mesh for stable, repeat-cleanable screening.
Application Playbook for Paint Lines (Primer, Top-Coat, Recovery, Booth Air)
Primer Production Filtration (Robust, High-Load)
- Pre-filter with Basket or Y-Type (mesh/perf)
- Bulk clean with Bag Filter Housing at 25–50 μm nominal
- Optional polish with Cartridge at 10–25 μm for uniform film build
Top-Coat & High-Gloss Filtration (Tight, Stable, Repeatable)
- Pre-filter fine gels using Bag Filters at 10–25 μm nominal
- Polish with Cartridge at 5–10 μm absolute to protect nozzles and sheen
Paint Recovery & Recirculation (Yield & Cost Control)
- Self-Cleaning Filters maintain loop cleanliness without frequent stops
- Duplex changeover keeps viscosity/flow steady during maintenance
Spray Booth / Air Intake (Dust-Free Finish)
- Panel & Pocket Filters, HEPA stages for finishing booths
- Keep airborne particulates off wet film; protect final appearance Link in context: Dust Collection & Air Filtration Units
Measurable Benefits with Praimo (Quality, Opex, Uptime)
- Finish Quality: Stable gloss, color delta within spec, fewer surface defects
- Uptime: Duplex and self-cleaning designs limit unplanned stops
- Lower Total Cost: Progressive loading extends element life; fewer scrap/rework hours
- Energy & Safety: Predictable ΔP means optimized pump curves; solvent-compatible seals reduce risk
Plants that log ΔP at start/end of each batch typically improve filter spend per kiloliter by 15–25% within a quarter—simply by timing change-outs to the real loading curve, not the calendar.
Engineering & Compliance (Design Codes, Testing, Documentation)
Praimo Industrial Filters & Spares Manufacturing Company builds for industrial duty:
- Design Codes: ASME-compliant housings; PED/CE options on request
- Pressure/Flow: Up to 10 bar(g) and 500 m³/h per train (application-dependent)
- Finishes: Pickled, passivated, or electropolished for solvent hygiene
- Sealing & Safety: EPDM/Viton/PTFE; vent/bleed, gauge ports, safety interlocks
- Testing: Hydrostatic testing (1.5× design pressure), material traceability dossiers
Electropolished wet surfaces shorten solvent flush cycles and reduce hold-up—an easy win when changing colorways frequently on the same line.
Integration & Customization (Skids, Controls, Turnkey Delivery)
- Skid-Mounted Systems: Pump, valves, gauges, ΔP transmitters, and filters on one frame
- Controls: Manual to PLC-ready, with alarm set-points for ΔP surge, changeover, and cleaning cycles
- Footprint & Piping: Horizontal or vertical housings; quick-open covers for rapid changeouts
- Cleanability: Drain ports, CIP lances, and sloped bases for minimal residue
Modular filtration skids shorten install time by 50–60% and standardize spares—especially valuable for multi-site paint producers rolling out common specs.
Maintenance & Change-Out Strategy (Protect Quality, Lower Cost)
- ΔP Monitoring: Set action at 0.6–0.8 bar ΔP to avoid sudden shear spikes and color shifts
- Reusable Elements: Ultrasonic or solvent cleaning for SS mesh elements; document cycles
- Gasket Care: Replace on schedule; inspect seat and cover for wear to prevent bypass
- Consumables: Use genuine Praimo elements for precise fit and solvent compatibility
Bypass is the silent quality killer. A perfect micron rating on paper means little if covers, clamps, or O-rings are tired. Make seal integrity part of every shift checklist.
Typical Paint Filtration Trains (Examples to Copy & Adapt)
Decorative Acrylic (Water-Borne)
- Basket Strainer (1–2 mm perf) →
- Bag Filter (25 μm nominal PP felt) →
- Cartridge Filter (10 μm absolute PP)
Solvent Top-Coat (Automotive / Industrial)
- Basket Strainer (mesh insert) →
- Bag Filter (10–25 μm nominal nylon mesh) →
- Cartridge Filter (5–10 μm absolute PTFE)
Primer / Undercoat (High Load)
- Y-Type Strainer →
- Multi-Bag Housing (50 μm nominal) →
- Cartridge Filter (10–25 μm absolute)
Lock these trains into SOPs with micron + media + ΔP set-points so shifts make the same decisions every time, regardless of operator.
Case Snapshot: Zero-Defect Finishing on Recirculation Line
A Western India decorative paint plant installed Praimo duplex bag housings ahead of final PTFE cartridge polish.
180 m³/h continuous; viscosity varied with colorways
100% elimination of visible gels at filling; 30% less downtime
Changeover without stops + absolute polishing at the end
Frequently Asked Questions (FAQ)
For high-gloss top-coats, 5–10 μm absolute polishing is a reliable starting point. Adjust after checking spray nozzles and gloss measurements.
Yes—design the hardware for the worst-case solvent, then switch media and seals (PTFE/Viton vs PP/EPDM) per batch type.
Choose electropolished interiors, use drain/vent ports, standardize solvent flush volumes, and audit hold-up in housings and lines.
Act at 0.6–0.8 bar ΔP or if flow stability degrades. Tie change-outs to ΔP and batch viscosity—not just hours on line.
Yes. Praimo Industrial Filters & Spares Manufacturing Company designs and supplies skid-mounted, PLC-ready systems with commissioning support and documentation.
Internal Paths to Explore (Recommended Next Steps)
- Cartridge Filter Housing — fine/absolute paint polishing
- Bag Filter Housing — high-viscosity, pigment-rich batches
- Duplex Filter — continuous duty without stops
- Basket Strainers — upstream pump/mill protection
- Self-Cleaning Filters — automated recirculation loops
- Dust Collection & Air Filtration Units — booth intake and finishing air
Rules That Protect Budgets
- Use the coarsest effective micron that still meets spec—longer cycles, fewer change-outs.
- Keep approach velocity modest to avoid erosion and re-entrainment in high-sand services.
- When downtime is expensive, specify duplex or self-cleaning—it’s often cheaper than extra manpower.
(Set these as internal links on the website to strengthen topical authority and user flow.)
Why Praimo: Proof in the Process
Stainless steel housings, duplex systems, self-cleaning filters, and custom skids built to code
PP, PTFE, nylon, polyester, and sintered SS elements matched to solvent systems
Hydro tests, MTCs, and SOP playbooks that make audits easy
Spares, training, and optimization audits for ΔP, flow, and micron control
Call to Action (Consult, Specify, Commission)
Ready to stabilize finish quality, protect nozzles, and lift plant throughput? Partner with Praimo Industrial Filters & Spares Manufacturing Company for a tailored filtration train—designed around your paint chemistry, viscosity window, target micron, and uptime goals.
