Industrial Filtration Solutions Food Beverage
Beverage Filtration Applications — Praimo Industrial Filters & Spares Manufacturing Company (Manufacturer in India)
In the beverage industry, purity and hygiene define product integrity. Every stage—from water preparation to final filling—demands precise, validated filtration. Praimo Industrial Filters & Spares Manufacturing Company delivers engineered filtration solutions that ensure flavor stability, clarity, and microbial safety across water, syrup, juice, alcohol, and carbonated lines. Our portfolio includes sanitary cartridge and bag filter housings, duplex basket strainers, sterile PTFE gas filters, and automatic self-cleaning systems, all designed for compliance with FDA, 3-A, and EHEDG standards. Each system is sized for flow, viscosity, ΔP, and lifetime performance—so your QA and operations teams can trust consistency with every batch.
Process Map for Beverage Filtration — Water, Syrup, Juice, Fermentation, Carbonation, Filling
Effective beverage filtration begins with clean water. Install basket strainers in the 100–500 µm range to capture fibers, rust, and scale, followed by polypropylene pleated or melt-blown cartridge filters rated 20–5 µm nominal. Housings made from SS316L stainless steel deliver long-term hygiene, while automatic backwash self-cleaning filters handle high turbidity with minimal downtime.
High-viscosity sugar syrup needs depth and surface filtration combined. Multi-bag filter housings (Size #1 or #2) equipped with duplex basket strainers allow seamless operation—preventing crystal clogging and line interruptions during peak production.
In juice filtration, a progressive stage of 20 → 10 → 5 µm nominal prefiltration before final 1–5 µm absolute filtration ensures brilliant clarity. For cold-stabilization, PES membranes (0.65–0.45 µm) achieve haze-free results without diatomaceous earth.

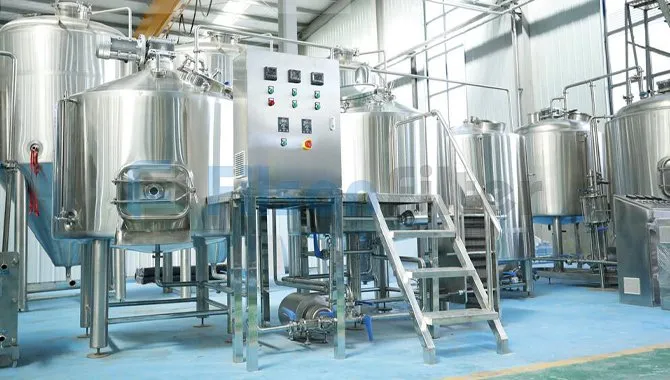

Brewery and winery applications use wire-mesh prefilters (50–20 µm) before PES membranes (0.65–0.2 µm) for polishing and microbial control. Where high-temperature cycles apply, stainless-steel sintered cartridges provide cleanable and reusable options.
Ensure sterile gas integrity with hydrophobic PTFE filters (0.2 µm) validated through bubble-point testing after sterilization. These filters protect carbonation lines and tank vents from microbial ingress.

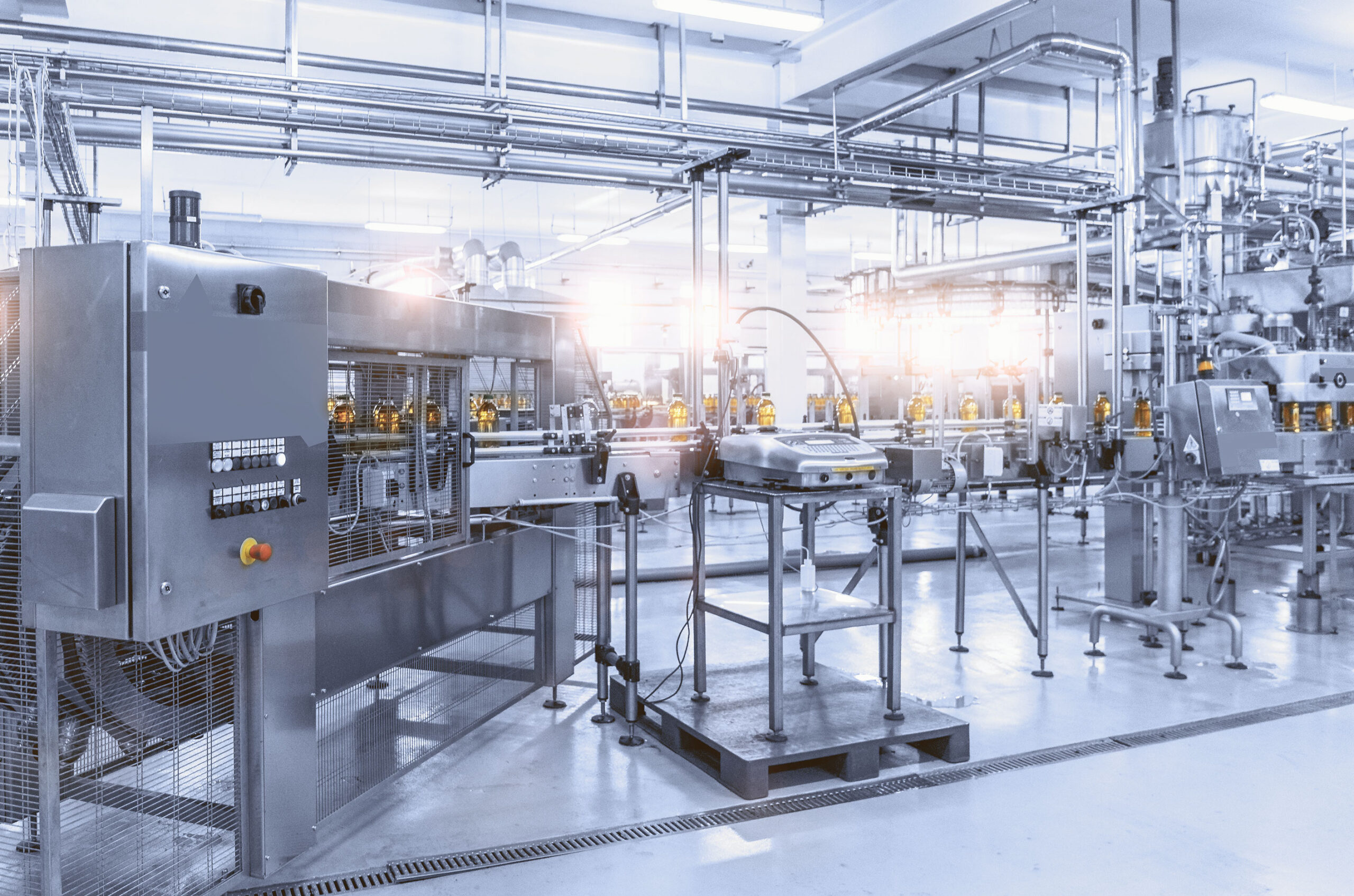

Critical points—fillers, cappers, and blow molders—benefit from a three-stage filtration setup: prefilter (1 µm), high-efficiency coalescer (0.01 µm), and sterile PTFE (0.2 µm). Housings are drainable, SIP-capable, and built for hygienic airflow.
Proper sizing of syrup transfer strainers to maintain a clean ΔP below 0.8 bar prevents pump overloads and drastically reduces micro-stoppages across production shifts.
Sanitary Cartridge & Bag Filter Housings for Beverages (SS316L | Hygienic | Electropolished)
- Praimo manufactures sanitary cartridge filter housings and multi-bag housings engineered for hygienic beverage production. Each SS316L housing features Tri-Clamp ends, electropolished interiors (Ra ≤ 0.8 µm), and full EN 10204 3.1 certification.
- Options include multi-round configurations for high flow rates and horizontal designs for low ceiling areas. For syrup or juice lines, davit-arm lids simplify bag changes and reduce operator strain.
- For non-product water or CIP return lines, UPVC and FRP housings offer corrosion resistance at lower cost—while maintaining sanitary-grade seals in product contact zones.
Field Experience:
Plants that switched from clamp-ring to swing-bolt lids with davit arms saw a 30–40% reduction in changeout time and nearly eliminated gasket misalignment during maintenance.
Micron Selection Guide for Beverages (0.2–100 µm)
20–5 µm nominal cartridges polish after coarse strainers.
50–10 µm nominal bags to handle viscosity and suspended solids.
5–1 µm absolute with PES 0.65 µm finishing for clarity.
20–5 µm prefiltration, followed by 0.45 or 0.2 µm membranes for sterile polish.
0.2 µm PTFE hydrophobic cartridges maintain sterility post-SIP.
50–10 µm nominal strainers and self-cleaning filters ensure system protection.
Best Practice:
Program filter change alerts when differential pressure reaches 1.8–2.0× the clean ΔP baseline—an early indicator to prevent taste deviation and energy waste.
Filter Media & Elements for Beverage Lines (PES, PP, PTFE, SS Sintered)
- PES Membranes (0.2–0.65 µm): Deliver low protein binding and high flow rates for microbial retention in fillers and bright tanks.
- PP Pleated and Melt-Blown (1–20 µm): Serve as economical prefilters, extending membrane life and ensuring consistent throughput.
- PTFE Hydrophobic Filters (0.2 µm): Ideal for CO₂ and N₂ sterile applications, combining steam durability with quick dry-down after SIP.
- Stainless Steel Sintered and Wire-Mesh Elements: Rugged, cleanable, and reusable; perfect for high-temperature or caustic loops in brewing or CIP circuits.
- Application Tip: Standardize cartridge lengths—10, 20, 30, and 40 inches—to simplify spares management across beverage plants and cut procurement complexity.
Strainers for Syrup, Juice & CIP — Basket, Duplex, and Y-Type
- Syrup and juice transfer lines benefit from inline basket strainers that trap pulp and crystal residues before pumps. Duplex basket strainers allow uninterrupted operation—when one chamber is cleaned, the other remains active, maintaining continuous flow.
- Y-type strainers are used in compact utility loops, while magnetic strainers prevent ferrous contamination in sugar handling and filling systems.
- Each unit is available with Tri-Clamp or flanged connections for compatibility with sanitary piping.
Process Observation:
Many beverage facilities improved uptime by pairing duplex strainers with 25 µm bag filters, ensuring consistent flow and stable pressure across syrup transfer stations.
Compressed Air & Gas Filtration for Beverage Plants (Sterile Air, CO₂/N₂)
- Every sterile beverage process relies on clean, validated gases. Praimo’s compressed air and CO₂ filtration systems use a progressive stack—prefilter, high-efficiency aerosol filter, and sterile PTFE membrane—to guarantee microbial protection at every point of use.
- These filters maintain sterility even under condensate-rich or high-temperature conditions, and all housings are fabricated in SS316L with electropolished interiors for hygienic performance.
Technical Note:
Always log integrity test results after sterilization. Regular documentation of bubble-point or diffusion tests supports compliance with HACCP and FSSAI audit trails.
CIP/SIP Compliance & Hygienic Design — 3-A, EHEDG, FDA, ISO 22000
- Praimo designs its filtration systems for total cleanability and traceability. All housings are SS316L, pickled and passivated, with Ra ≤ 0.8 µm surfaces and FDA-grade gaskets. Hydrostatic testing is done at 1.5× the design pressure, with full 3.1 material certificates, weld maps, and surface finish reports.
- Vertical candle configurations ensure full drainage and eliminate dead zones. Hemispherical domes and strategically placed vent ports promote faster CIP and SIP validation cycles.
Engineering Insight:
Specifying removable tube sheets in multi-round housings enables rapid swab testing—saving hours during quality validation and sanitation audits.
Sizing & Selection — Engineer’s Quick Reference (Flow, Viscosity, ΔP, Temperature, Micron)
- Proper filtration sizing starts with data: line flow (m³/h), syrup viscosity (°Brix), target micron, operating temperature, and maximum allowable ΔP. From these, Praimo engineers calculate housing count, element surface area, and changeout frequency to ensure optimal flow stability.
- Systems are designed for 1.5× peak flow, preventing ΔP surges during viscosity or temperature variations. Each configuration balances pump performance, media life, and energy efficiency.
Field Experience:
Plants that oversize by 25–30% on flow area during commissioning experience 40% longer filter life with consistent taste quality across batches.
Case Studies — Beverage Plants (Water, Juice, Soft Drinks, Breweries)
A bottling unit replaced single strainers with duplex basket strainers and 25 µm PP bag filters, achieving 42% less downtime and stable pressure across syrup transfer.
By standardizing 0.2 µm PTFE sterile vents with documented bubble-point validation, a national beverage brand eliminated recurring audit findings and reduced maintenance load.
Switching from DE-based polishing to 1–5 µm PP prefilters followed by 0.65 µm PES membranes achieved haze-free clarity with lower consumable costs.
In most beverage plants, performance gains come not from tighter membranes but from balanced staging—prefilter, mid-guard, and final polish tuned to solids profile.
FAQs — Beverage Filtration (Schema-Ready)
Syrup typically uses 10–50 µm nominal bag filters. Juice and nectar applications run at 5–1 µm absolute with 0.65 µm PES membranes. Water prefiltration ranges between 20–5 µm nominal.
Yes. Use 0.2 µm PTFE hydrophobic sterile air filters on filler vents, integrity-tested after SIP to maintain microbial control.
Base changeouts on ΔP. When differential pressure doubles from the clean value (1.8–2.0×), replace or clean the filters to avoid flavor drift.
Yes. Praimo’s sanitary duplex basket strainers with electropolished interiors and CIP-compatible geometry are designed for beverage-grade applications.
Each system ships with 3.1 material certificates, hydrotest results, surface finish reports, and integrity-test SOPs for complete audit readiness.
Call to Action — Request Technical Consultation / Download Datasheet / Get a Quote
Choose a trusted beverage filtration manufacturer in India that designs for hygiene, reliability, and documented performance.
Praimo Industrial Filters & Spares Manufacturing Company offers SS316L sanitary cartridge and bag filter housings, duplex basket strainers, sterile PTFE gas filters, self-cleaning utility filters, and stainless-steel sintered elements engineered to meet global beverage standards.
Share your process details—flow, viscosity, target micron, ΔP limits, temperature, and CIP/SIP conditions—and receive a P&ID-level filtration design with drawings and spare recommendations.
Access engineering drawings, hydrotest certificates, EN 10204 3.1 documentation, and compliance files ready for internal QA and auditor review.
Submit your RFQ for standard or custom configurations. Praimo provides transparent pricing, export-ready packaging, and full technical support.
Clean process. Consistent taste. Compliant documentation.
That’s the Praimo standard. Reach out today to Praimo Industrial Filters & Spares Manufacturing Company—your partner in precision beverage filtration engineered for performance and trust.
