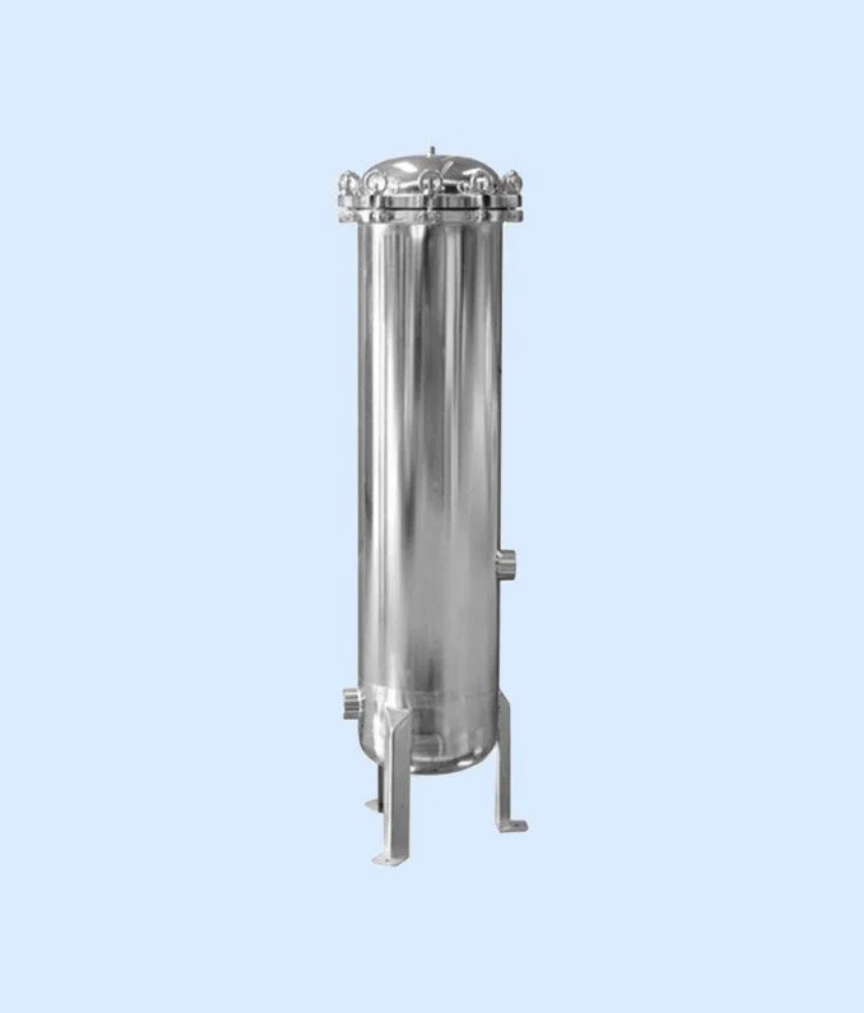

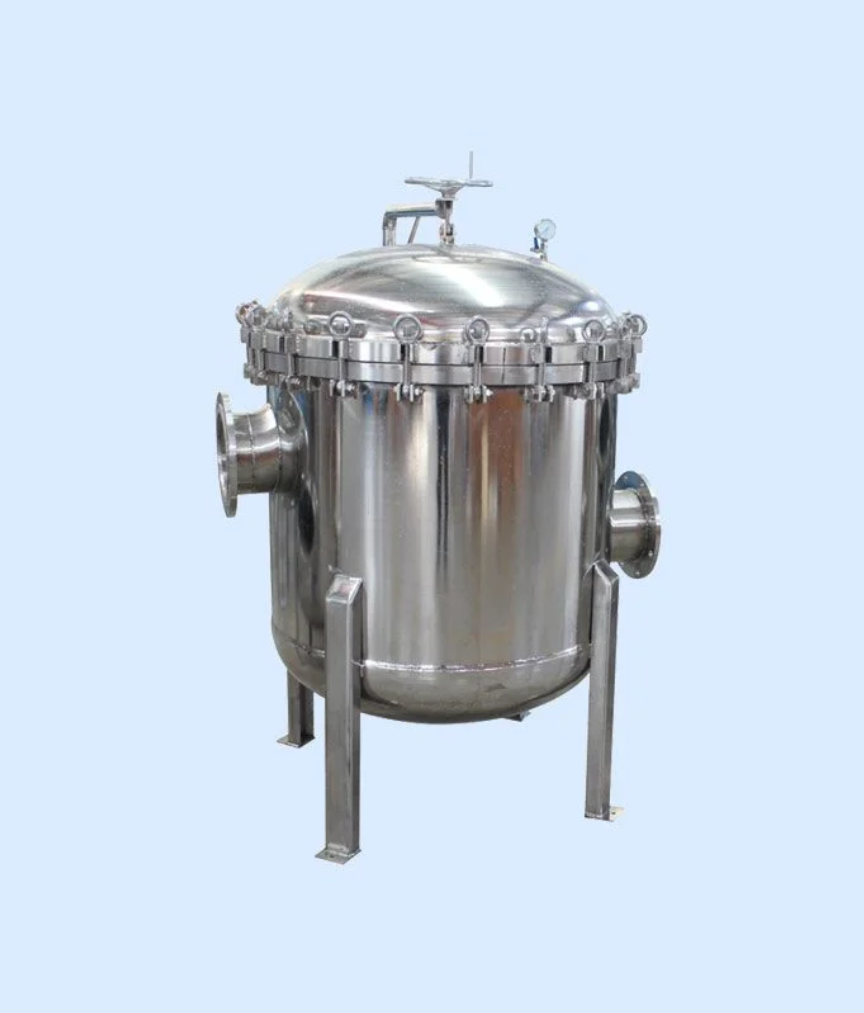

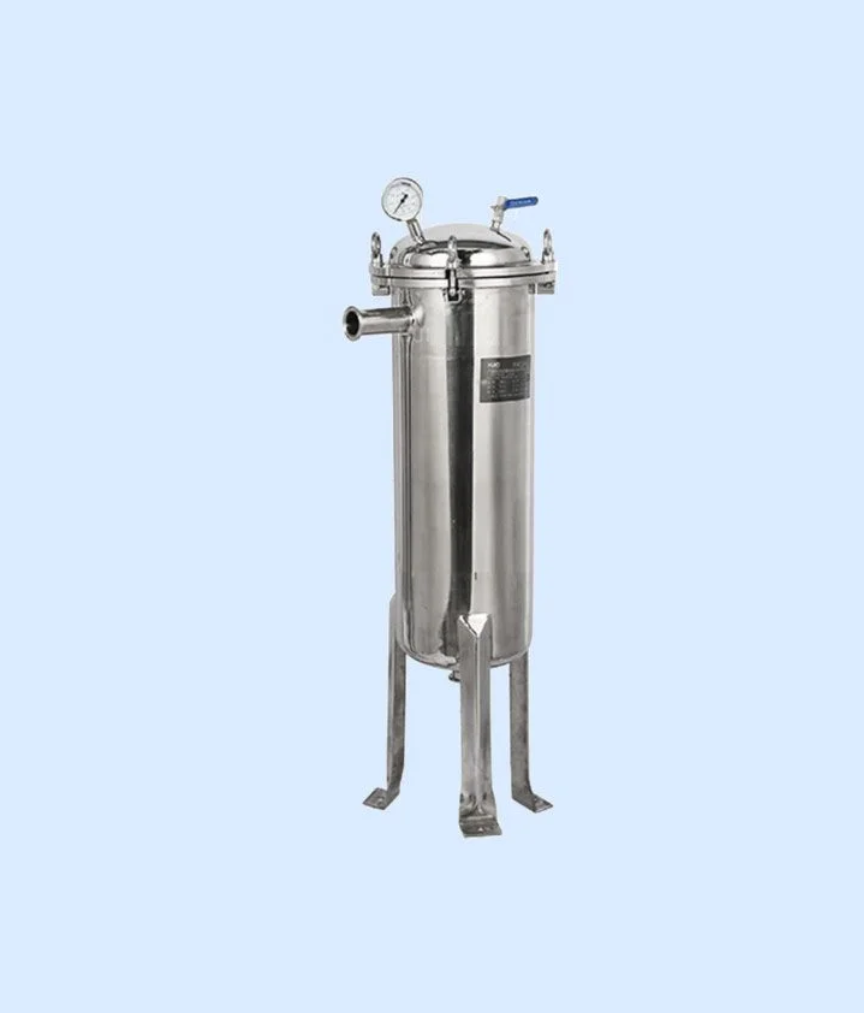

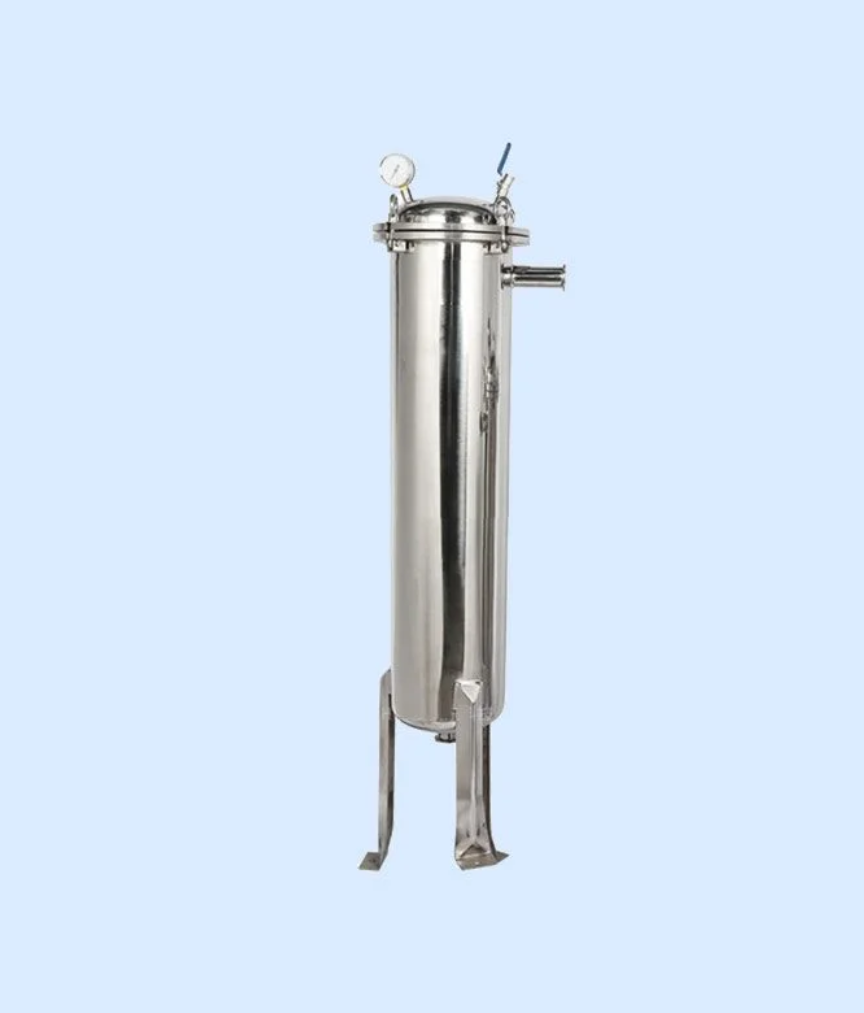

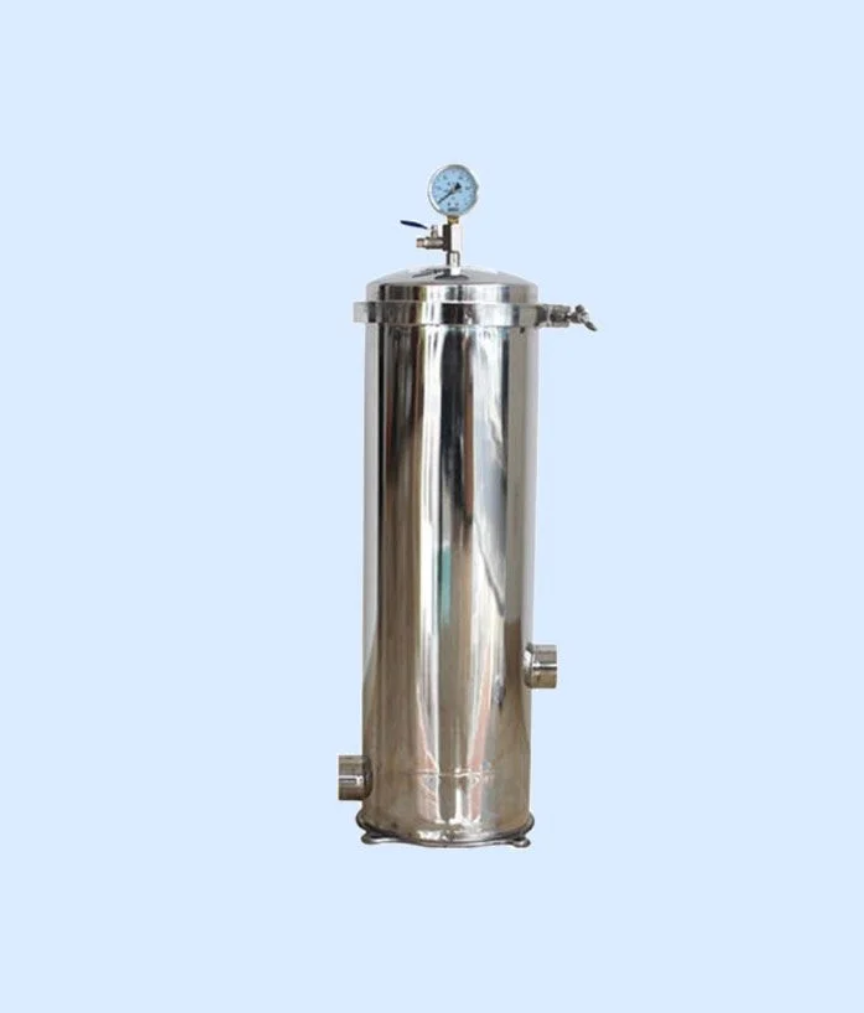

Cartridge Filter housing system is widely used in manufacturing industries and it gives high flow. It has more dirt holding capacity then compared to any other filter system. It comes with Single and multiple cartridges in one filter housing it ranges from 1 to 400 cartridges. The cartridge filter housing is used in multiple stages in process industries; mostly it is used as a polishing filter for final filtration because it gives depth filtration. Filter Housing was constructed using seamless pipes and sometimes it got welded from bending the high thickness sheets. To avoid any foreign particle migration there is a positing sealing gasket and o Ring available depending upon the application and cartridges chosen.
Operation
Liquids that get Contaminated go to the housing and hit the entire surface of the filter cartridges and give depth filtration from outside to inside. All the contamination gets stuck on the outer surface of the filter cartridges and clear fluid gets passed through the filter cartridge inner diameter.
Features & Benefits
- More dirt can be held in the Cartridge Filter Housing.
- A Zero holds up design is available in Code 7 design.
- The filter housing can be permanently connected to the piping system.
- Simple to wash
- sealing with an O ring and a gasket.
- Cartridge Filter Housing 226 O Ring, 222 O Ring, DOE Filter Housing
- Filter cartridges up to 10 inches long, 20 inches long, 30 inches long, 40 inches long, 50 inches long, and 60 inches long are all supported.
- 34" to 24" pipe end connectors
- Threaded centre posts or V posts
- The tri-clover design opens quickly.
- It's low-maintenance and simple to use.
- Time spent on the ground is minimal.
- up to a 2000 m3/hr flow rate and more.
- A design can be made to order.
- Permanent piping is installed in all of the housing units.
- To prevent dirt and scale adhesion, all housings constructed of stainless steel 316 L, 316, and 304 are mirror polished and electropolished.
- Housings are made of carbon steel and are sanded, epoxy coated and then painted.
- There is an ASME code stamp available.
- Designs for duplex, triplex, and jacketed cartridge filter units are available.
- There are high-temperature and high-pressure designs available.
Special Options
- Construction and sanitary fittings
- The pressure rating is higher.
- Alloy steel housings
- Jacketed Cartridge Filter Housing available.
- cartridge Filter sealing for 226, National Pipe Thread ( NPT ) and special option cartridges Designs for high-temperature gaskets are available
Technical Specifications
Sizes (Cartridge filter housings suitable for)
- From 1 to 300 Cartridges Can be fit in Single Cartridge Filter Housing
- Cartridges Diameter can vary from 2 Inch to 8 Inch
- Length available from 10” , 20” , 30” , 40” , 50”, 60”
Flow Rate
- Flow rate from 1 m3/hr to 1800 m3/hr and more available in pleated design.
Material of construction
SS 304, SS316, SS316L, Duplex Steel, Super Duplex Stainless Steel, Carbon Steel, MS, PP ( Polypropylene ), Rubber Lining, Rubber Coating, PTFE lining, PTFE coating on any metal from above
Cartridge filter housing suitable for filter cartridges of
- DOE ( Double Open End Design ), Code 7 Design, 226 O Ring Design, NPT Connection Type Threaded design
Gasket / O Ring Material
- Natural Rubber, Nitrile Rubber, Neoprene, Silicone, Viton, EPDM, Spiral Wound Gasket, PTFE
End connections available
- BSP, NPT, SMS, Flanged Class E, Flanged Class F, DIN, TC, Dairy End Connection
Applications
Bore Well water, Food, Beverages, Dairy, chemicals, Pre RO Filtration, Dyes, water treatment, coolants, paints, ink, pharma
